Genie Material Lifts
Genie Material Lifts
Hire or buy Genie Material Lifts for construction and industrial applications from Concord Lifting Equipment. Concord Lifting Equipment are one of the UK premier stockists of Genie lifts with a huge depth of knowledge at each depot to make sure you get the best machine for your requirements. Interested in LOLER testing and certification? Concord Lifting have got you covered as well. Not sure which product you are after? Email genie@concordlifting.co.uk or call us at 03333 66 00 99 and we will be more than happy to guide you in the right direction.
- Available in 5 basic models.
- Compact models
- Allows lifting and manoeuvres in congested work areas with ease.
- The Genie Air Hoist includes one gas bottle, any additional bottles are a one-off charge.
- For lighter loads consider the Superlift contractor or Genie Lift.
Genie Jib Boom
- Transforms your Genie Superlift crane or hoist.
- Positions tooling fixtures, hoist circuit breakers, engines etc.
Genie Load Platforms
- Fits easily over standard or adjustable forks – no tools required to install or remove. Assists in loading and unloading heavy objects.
For more information on the Genie Range of Material Lift Products, follow this link to head to the Genie website
Genie Lift Line Basic Specifications
Product |
Lifting Height |
Width – stowed |
Load Capacity |
|---|---|---|---|
GL™-4 |
5 ft 11 in (1.80 m) | 2 ft .75 in (0.63 m) | 500 lbs (227 kg) |
GL™-8 |
10 ft .5 in (3.06 m) | 2 ft .75 in (0.63 m) | 400 lbs (181 kg) |
GL™-10 |
11 ft 8 in (3.56 m) | 2 ft .75 in (0.63 m) | 350 lbs (159 kg) |
GL™-12 |
13 ft 9.5 in (4.20 m) | 2 ft .75 in (0.63 m) | 350 lbs (159 kg) |
Genie Superlift Advantage Line Specifications
Product |
Lifting Height |
Width – stowed |
Load Capacity |
|---|---|---|---|
SLA™-5 |
6 ft 7 in (2.0 m) | 2 ft .75 in (0.63 m) | 1000 lbs (454 kg) |

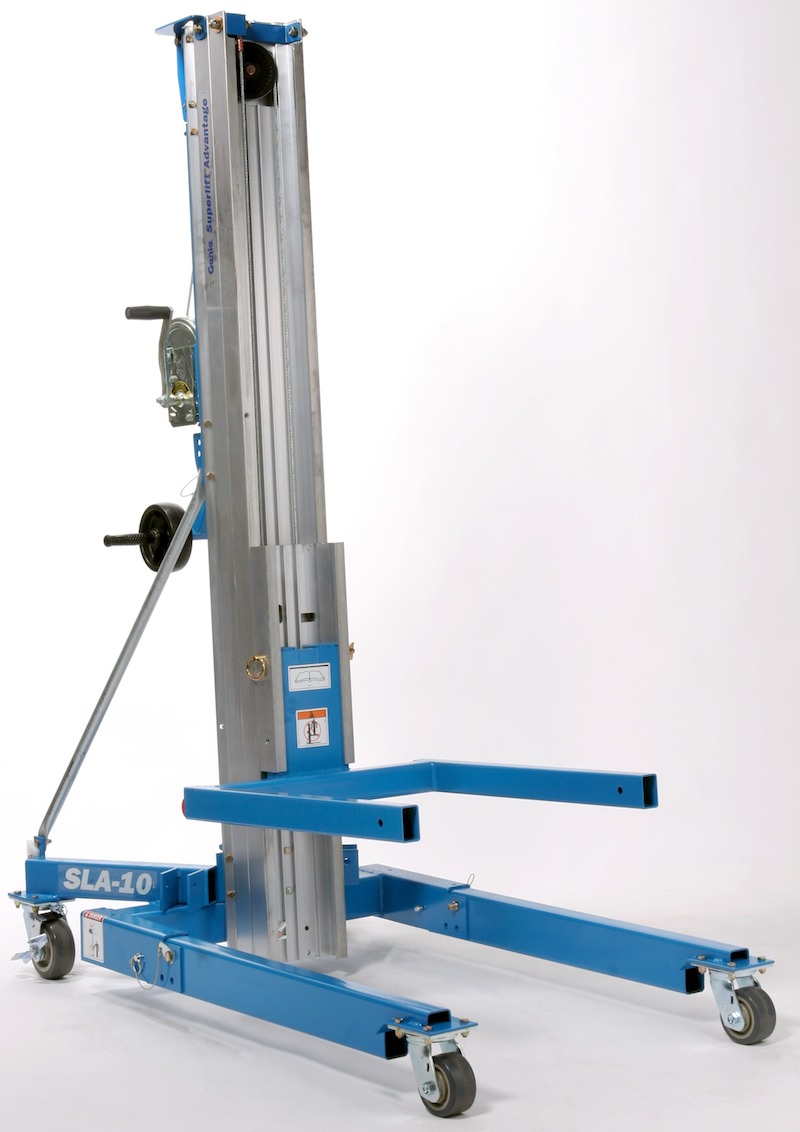

SLA™-10 |
11 ft 5.5 in (3.49 m) | 2 ft .75 in (0.63 m) | 1000 lbs (454 kg) |

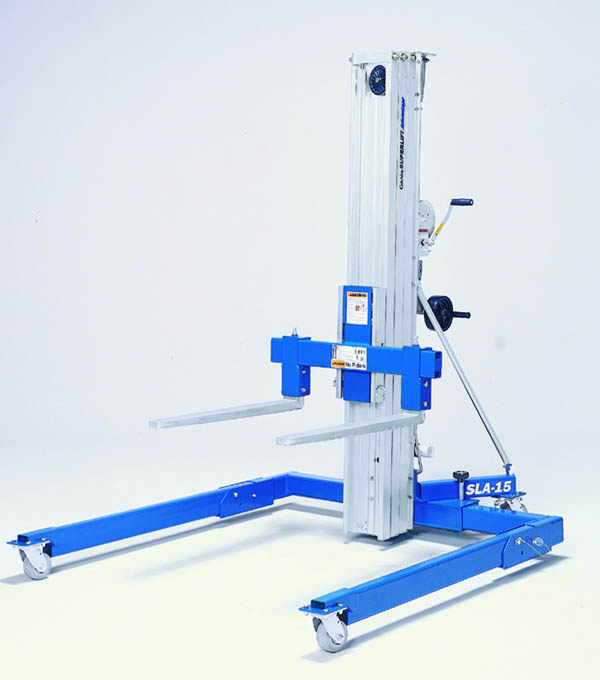

SLA™-15 |
16 ft 4 in (4.98 m) | 2 ft .75 in (0.63 m) | 800 lbs (363 kg) |
SLA™-20 |
21 ft 2.5 in (6.46 m) | 2 ft .75 in (0.63 m) | 800 lbs (363 kg) |
SLA™-25 |
26 ft .5 in (7.94 m) | 2 ft .75 in (0.63 m) | 650 lbs (295 kg) |
Genie Superlift Contractor Line Specifications
Product |
Lifting height (max.) |
Load capacity* |
Weight** |
|---|---|---|---|
SLC™-12 |
3.94 m (12 ft 11 in) | 295 kg (650 lbs) | 102 kg (225 lbs) |
SLC™-18 |
5.64 m (18 ft 6 in) | 295 kg (650 lbs) | 139 kg (307 lbs) |
SLC™-24 |
7.32 m (24 ft) | 295 kg (650 lbs) | 157 kg (347 lbs) |
*36 cm load centre (14 in)
** Weight will vary depending on options and/or country standards
Genie-Lift-Range-Brochure-CLE.pdf- Genie Machine operating instructions
Related Products

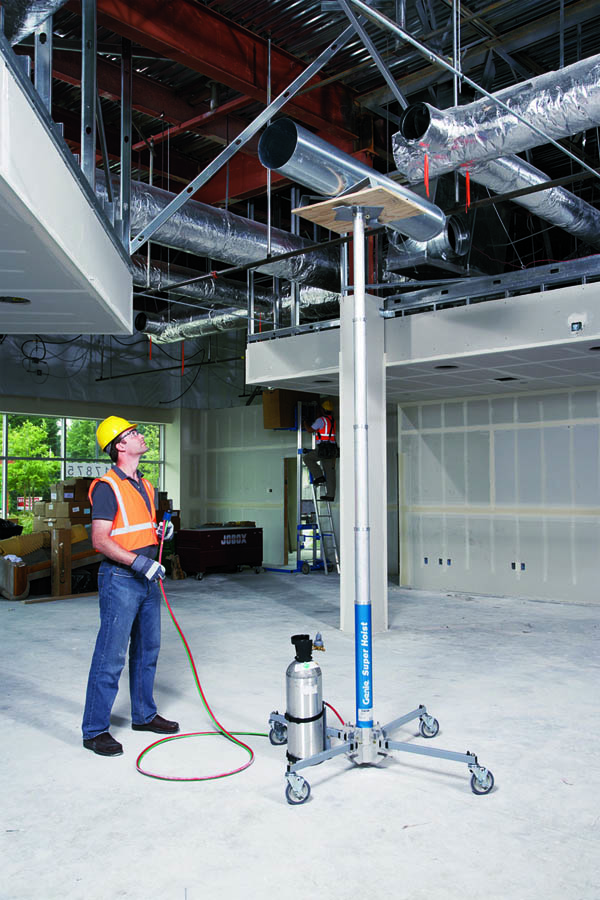

Genie Super Hoist
The lightweight, Genie Super Lift portable material lift powered by CO2 or compressed air is available for hire or sale in two models from Concord.
Genie Superlift Advantage
Manually operated material lift with heavy-duty design and patented telescoping mast system. Easy to load and unload on or off a vehicle for transport. Quick set up requiring no tools.

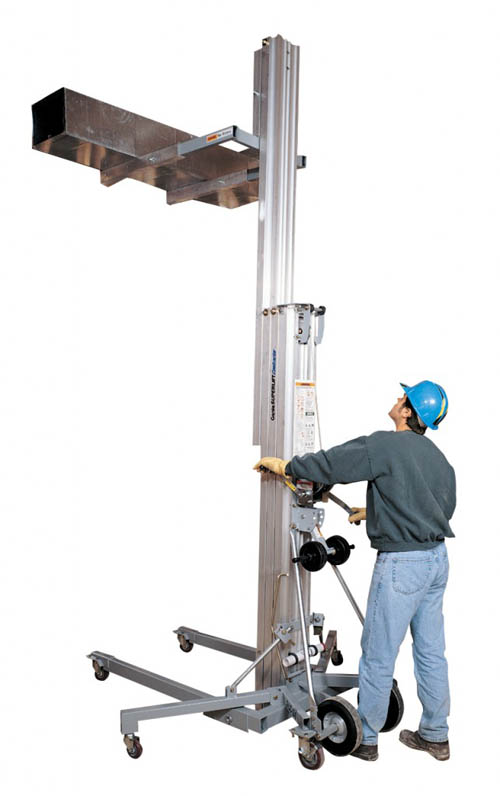

Genie Superlift Contractor
Genie Superlift Contractor from Concord is easily operated by one person. The Superlift is quick to set up on site and requires no extra tools. Always available from Concord Lifting Equipment depots.
