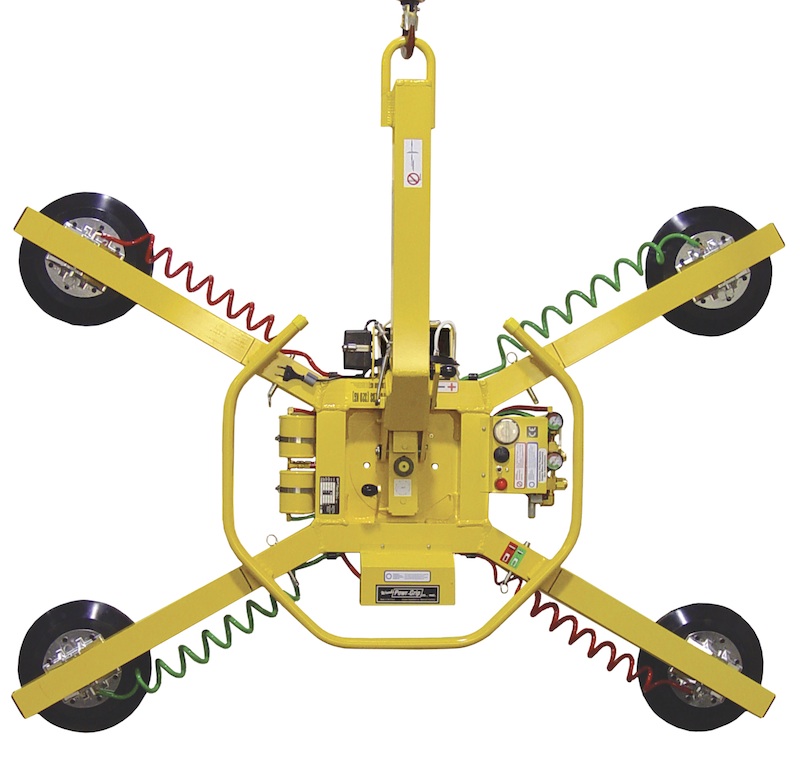

Vacuum Handler MRT4 A
Woods Powr Grip MRT4 A
With three frame configurations, 90° tilt and continuous 360° rotation, these Powr-Grip® vacuum lifters deliver maximum versatility and range of motion in the shop or at the construction site
Standard Vacuum Pad Spread:
- MRT411LDC 28-1/4″ x 32-3/4″ [717 x 834 mm] (basic configuration)
- 48-1/4″ x 67-1/2″ [1227 x 1716 mm] (extended configuration)
- 78-1/4″ x 15-3/4″ [1988 x 402 mm] (linear configuration)
- MRT49DC subtract 2-3/4″ [73 mm] from each dimension listed above
- MRT4HV11DC subtract 1″ [25 mm] from each dimension listed above
Number / Size of Vacuum Pads:
- MRT411LDC – 4 / 11″ [28 cm] dia. lipped vacuum pads
- MRT49DC – 4 / 9″ [23 cm] diameter vacuum pads
- MRT4HV11DC – 4 / 10″ [25 cm] dia. lipped vacuum pads
Load Capacity*:
- MRT411LDC – 700 lbs [320 kg]
- MRT49DC – 500 lbs [225 kg]
- MRT4HV11DC – 600 lbs [270 kg]
(*On smooth, nonporous surfaces)
Average Weight of Vacuum Lifter:122 lbs [56 kg]
Standard Operating Power:12 volts DC, 10 amps
Load Movement:Manual rotation, 360° edgewise, with locking at each quarter pointManual tilt, 90° between upright and flat, with automatic latching in upright position
Standard Features:
- Low vacuum warning light
- On-board battery and charger
- Battery energy gauge
- Vacuum gauge
- Vacuum line filter
- Vacuum reserve tank
- Spring-mounted vacuum pads
- Movable vacuum pad mounts
- Vacuum pad extension arms.
